Broad-Paired Touring Alloy Wheel - 9006

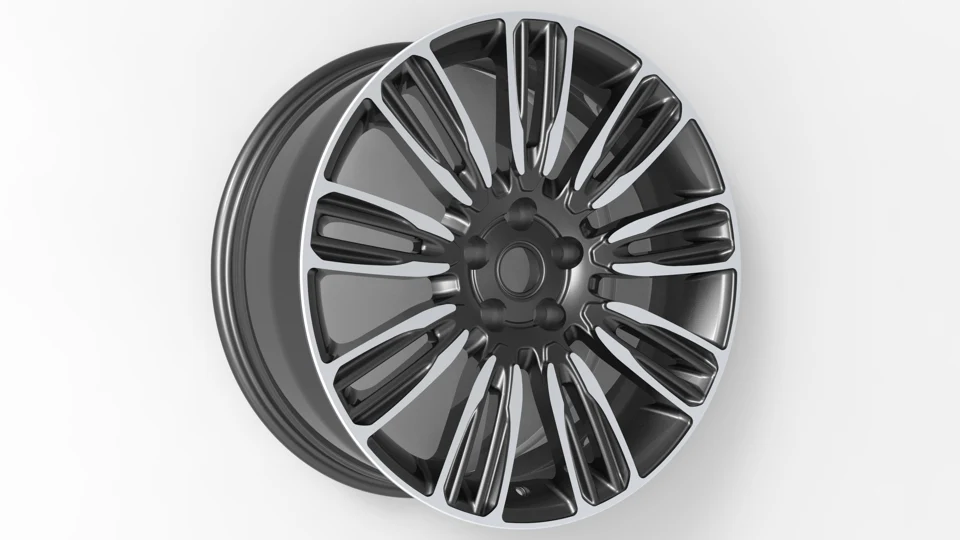

Product illustration
WW-P36 · Forged passenger and touring wheels

Broad-Paired Touring Alloy Wheel - 9006

Passenger-car aftermarket; approve vehicle, axle load and brake clearance.

Configuration specifications
Design model9006
Base size20 x 9 in (508 x 228.6 mm)
PCD range100-130 mm
ET / first size10-51 mm

ET and bore refer to the first listed size. Other sizes require their own drawing; no load rating is claimed.

Request a QuoteView Catalogue Page ↗

Construction & Material

Broad-Paired Touring face design. Alloy, process and heat treatment are specified in the approved configuration.

Options

Bore, first size: 57.1-84.1 mm. Finish and drilled pattern by approved drawing; PCD ranges do not confirm bolt count.

Size options

20 x 9 in (508 x 228.6 mm); 21 x 9.5 in (533.4 x 241.3 mm); 22 x 9.5 in (558.8 x 241.3 mm)

Procurement Value

3 size options in one identified design. Freeze fitments and finishes for repeat batch ordering.

Mounting & Selection

Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.

Standards & Qualification

FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.

Packing & Delivery

Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.

Model Approval

Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
